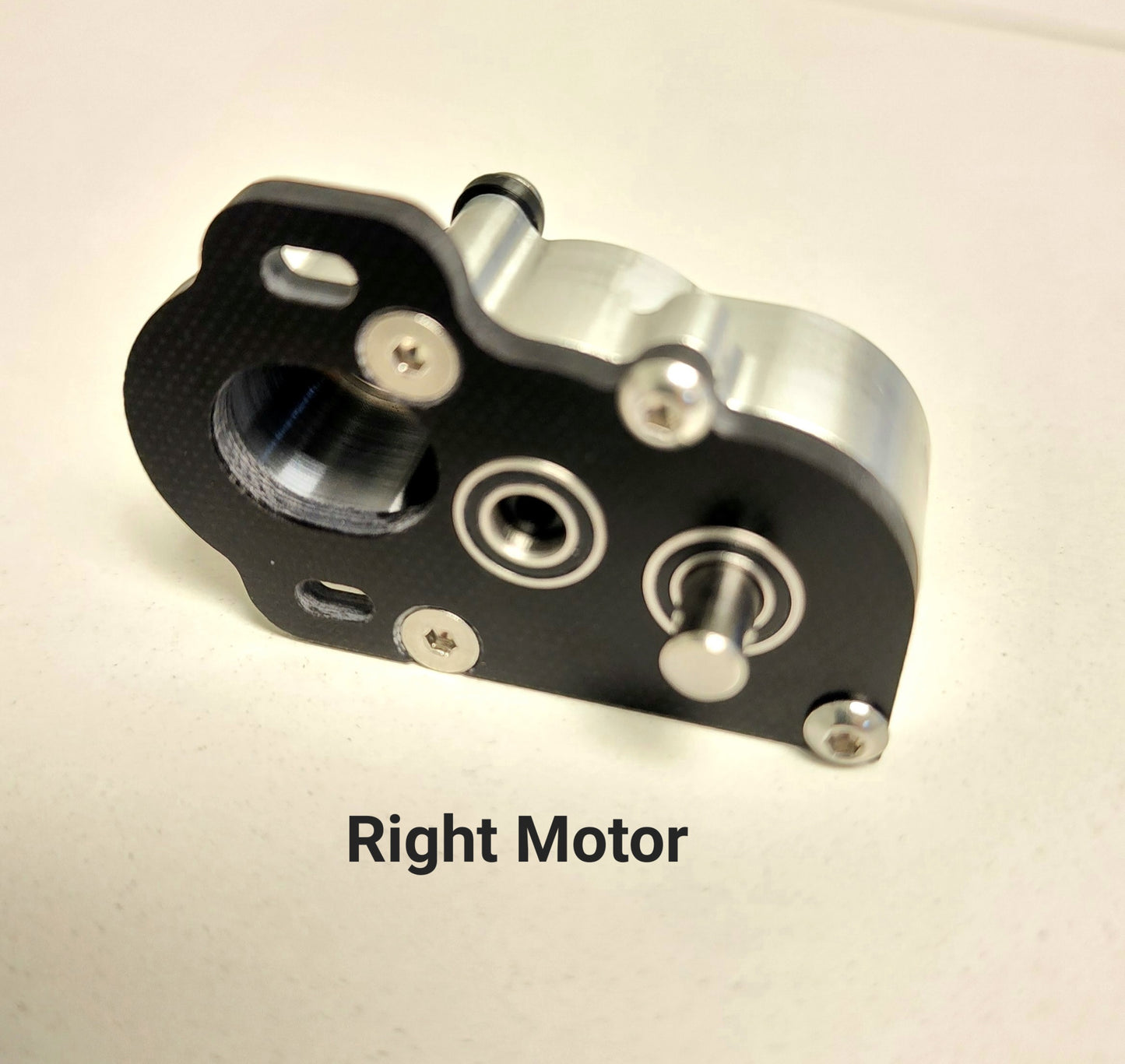

Portal Transmission, Right Motor

Tiny Transmission for portal axles (gearing is not sufficient for non-portal axles).

This is the transmission from our Capra axle based Asylum Sporty.

Forward facing motor with optional left or right side motor placement.

Fully enclosed.

Hardened chromoly gears.

Titanium 5mm output shaft.

Our smallest and lightest transmission so far.

Dimensions: 52mm W x 34mm H x 21mm L (not counting output shaft)

Weight: 36.5g

Motor bolt holes 25mm on center. Skid plate mounting holes 28mm on center (M3 threaded holes).

Gear ratio 3:1 X pinon/spur combo. 36T spur gear (48 pitch).

Fits pinions from 11T to 18T (48 Pitch)

Gear ratio:

11T pinon: 9.8

12T pinion: 9.0

13T pinion: 8.3

14T pinion: 7.7

15T pinon: 7.2

16T pinion: 6.75

17T pinion: 6.35

18T pinion: 6.0
